VRAY Instrument Limited
| Accuracy: | ±0.001% | Detector: | Fast-SDD |
|---|---|---|---|
| Measurement Range: | Al~U | Model: | VR-T9 |
| Principle: | Xrf | Rated Power: | 100W |
| Temperature: | 10℃～35℃ | Input Voltage: | AC220V，50Hz |

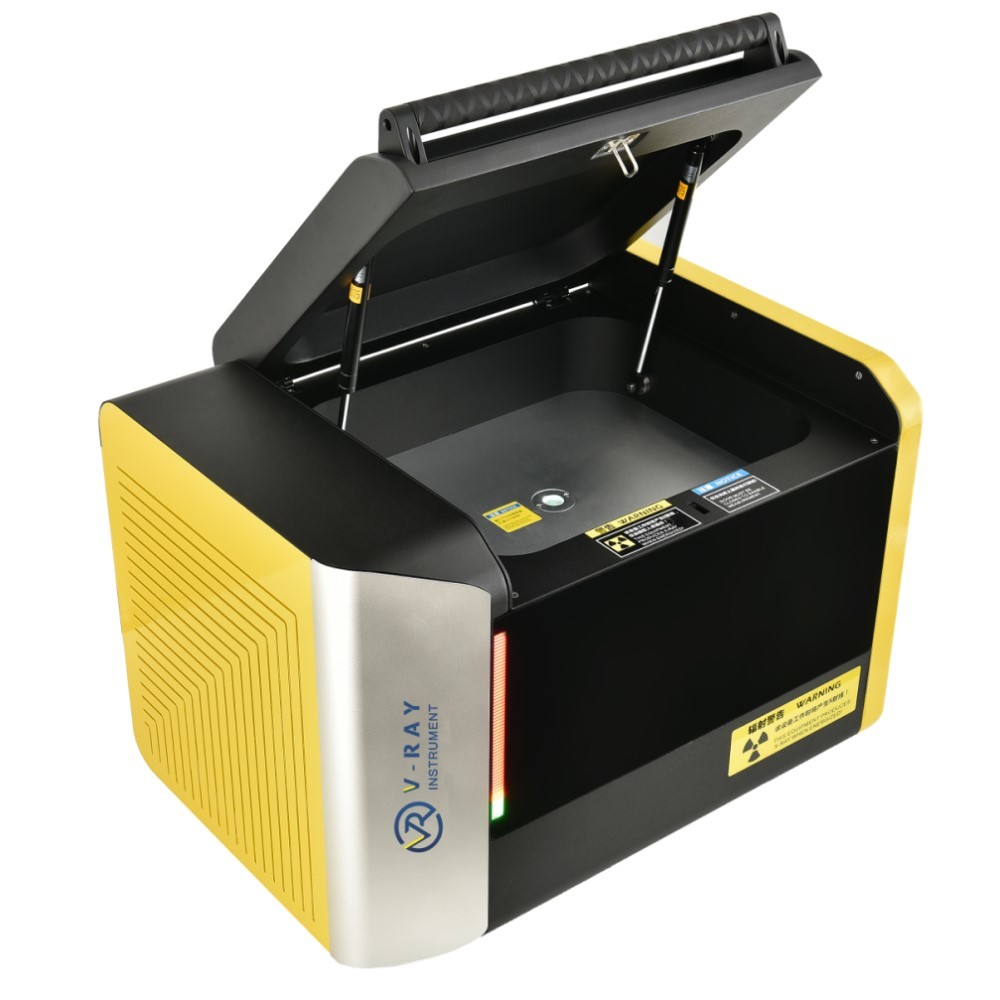

XRF Analyzer VR-T9
XRF Analyzer VR-T9 is is excellent XRF Analyzer for Gold Fineness Quality Control. This device ensures precise examination of precious metals, accommodating varying sample sizes with exceptional accuracy. Its spacious chamber allows for comprehensive testing, while the diverse collimators guarantee detailed analysis, making it effortless to gain comprehensive insights into metal composition. Experience superior analysis capabilities and effortless testing with this XRF analyzer, designed with a large sample chamber and versatile collimators for accurate and detailed assessments.
Specification:
| Input voltage: | AC220V,50Hz |
| Machine size: | 570×400×400mm |
| Sample chamber size: | 365×300×78mm |
| Rated power: | 100W |
| Net weight: | 47KG |
| Detector: | Fast-SDD detector |
| HV power supply: | 50KV/1mA digital HV |
| X-ray tube: | 50KV/1mA |
| Target material: | wolfram |
| Collimator: | ϕ1.5mm |
| Temperature: | 10℃～35℃ |
| Humidity: | 40%-70% No condensation |
- Simple and Smart Operation
- High precision detection ±0.001%
- Spectrogram contrast function, which can quickly detect the possible change of the material composition and reduce the risk
- Customized test report content to meet different test data management requirements
- X-ray tube aging automatically to protect the equipment and minimize the effort required for device maintenance
